Choosing Properties to Export

ARDI uses your relationships to help find the properties you are likely to be interested in around this asset.

This includes all of the properties of the asset itself, along with properties of items inside and around the asset too.

For example, if you go to export the properties of a wheel on a car, it will let you download all of the details of the wheel itself, but might also include information about the engine and steering system.

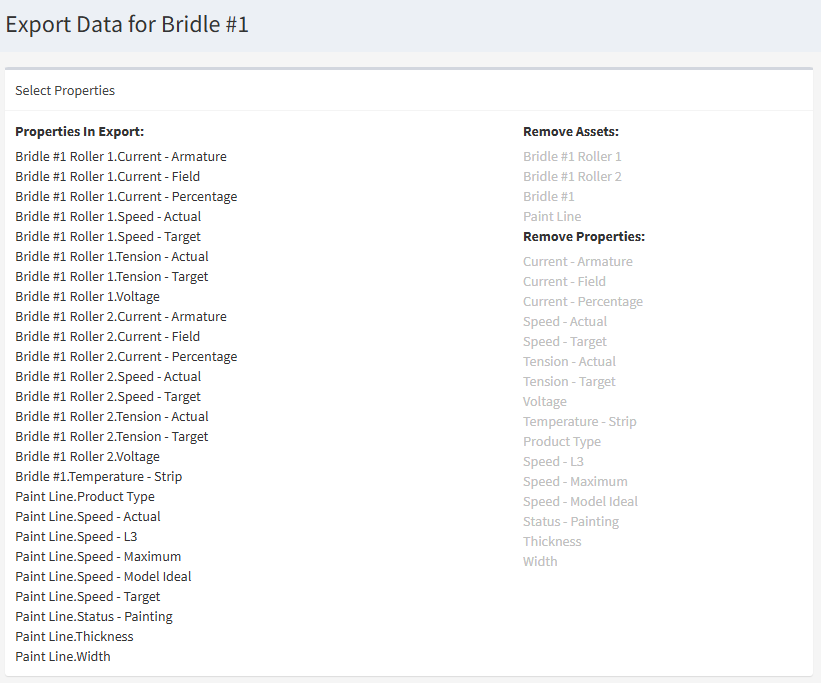

If you would like to remove properties from the export, you can use the controls on the right. You're able to disable specific assets and properties from the list. These are toggle controls - clicking an asset name once will remove it, clicking the name again will add it back in.

The Add Other option allows you to add other properties from assets that aren't directly related.

To do this, simply start typing in the name (or other unique identifier) of the asset in the field provided. A number of possible matches will appear. Continue to click until you've selected a single property name and it will be added to the list.

For example, if we wanted to add the temperature of the main machine, we'd start by writing 'Main', and from the list choose 'Main Machine', followed by 'Main Machine.Temperature'.

Once you've chosen which properties you need, you'll then need to set your other options.
